CarviFPV

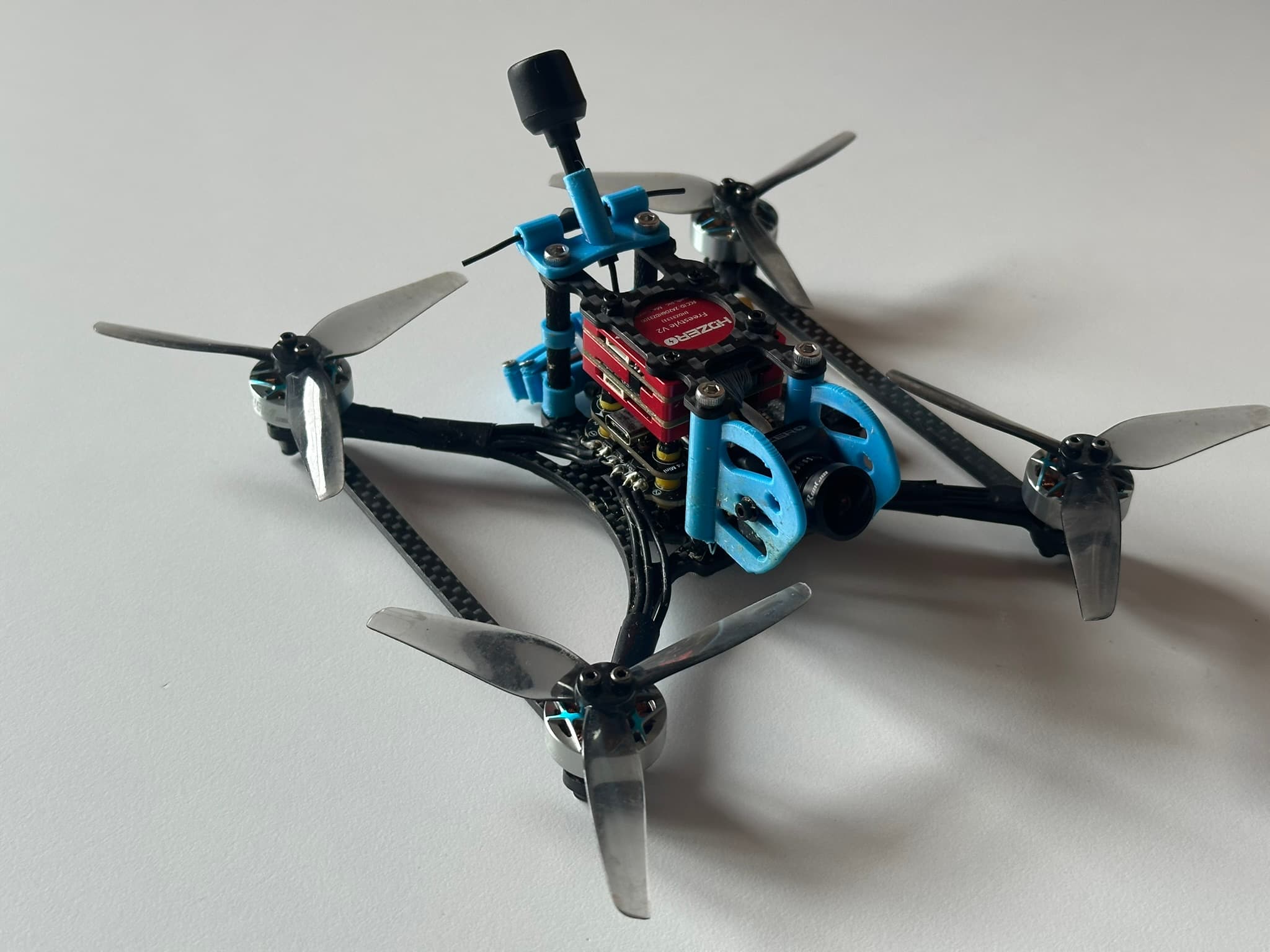

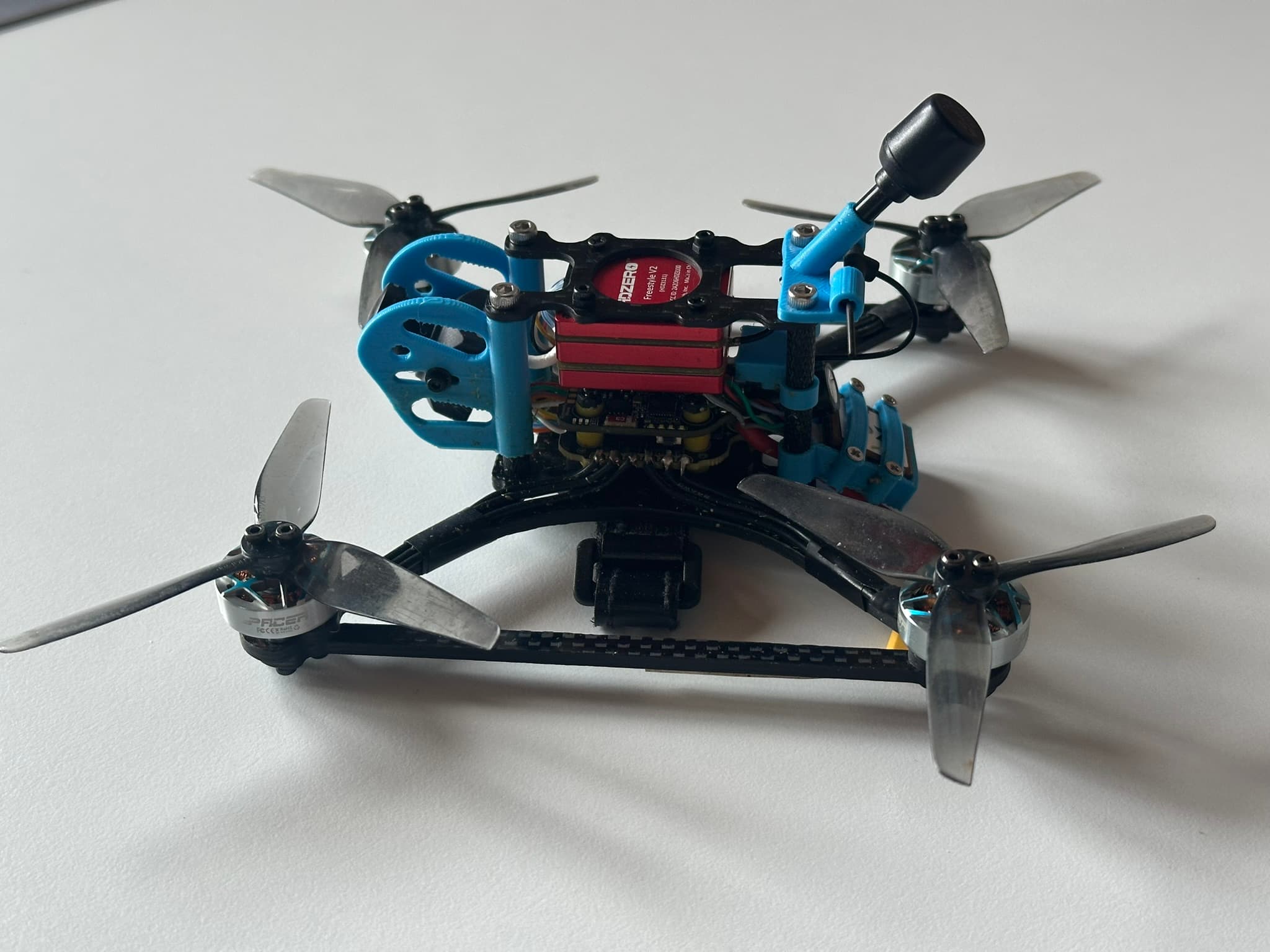

CA35-160

Compact 160 mm CarviFPV frame for HDZero builds

CA35-160 is a compact 160 mm frame with a 1.5 mm CF top and 3 mm CF main structure, designed as a clean and practical platform for lightweight FPV builds.

Get model from CNCDronesBack to CarviFPV

Image Gallery

3 images

Highlights

  • Top plate made from 1.5 mm carbon fiber, with the rest of the frame in 3 mm carbon fiber for a simple and rigid structure
  • Includes 4 aluminium tubes, 35 mm long, M3, plus 8 M3x8 mm screws and 4 M2x4 mm screws for the GPS holder
  • Built around the HDZero Freestyle V2 and HDZero Micro V3 camera for a compact digital FPV setup
  • Uses the SpeedyBee F405 Mini BLS 35A 20x20 flight controller, while 25x25 FCs should also fit
  • Powered by T-Motor P1604 3800 kV 4S motors, HQ 3.5x2.5x3 tri-blade props, and a Tattu R-Line 750 mAh 4S battery
