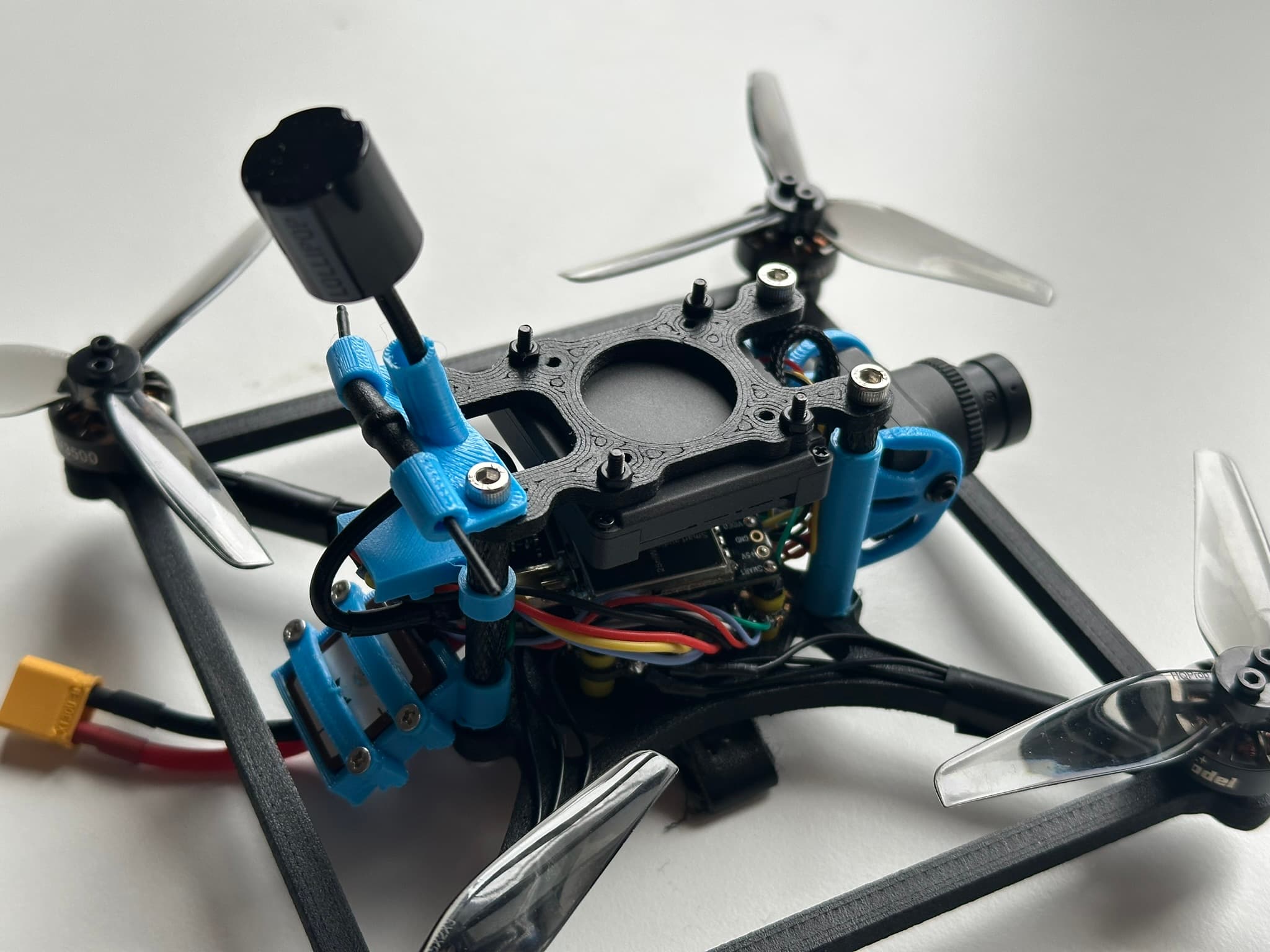

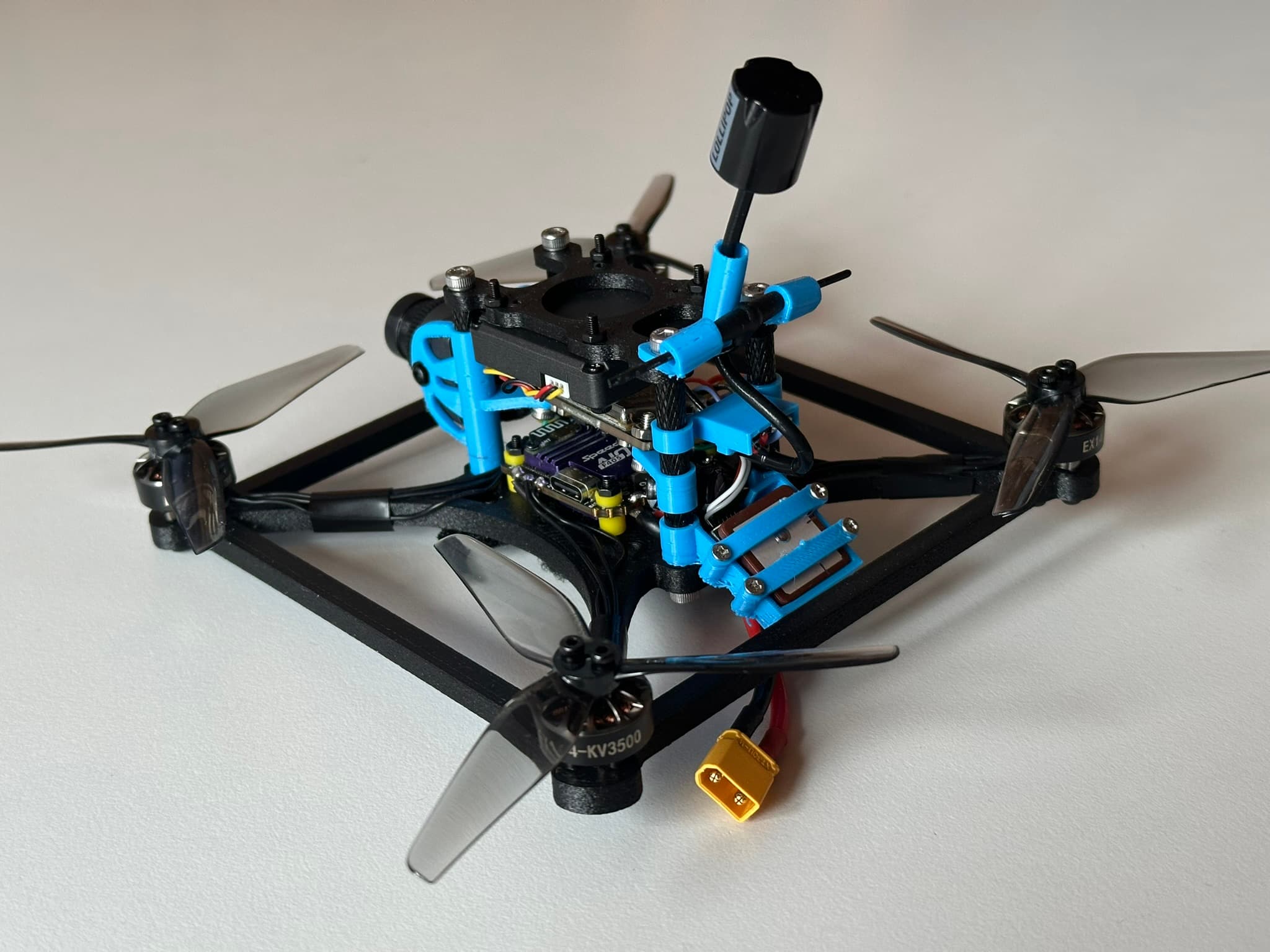

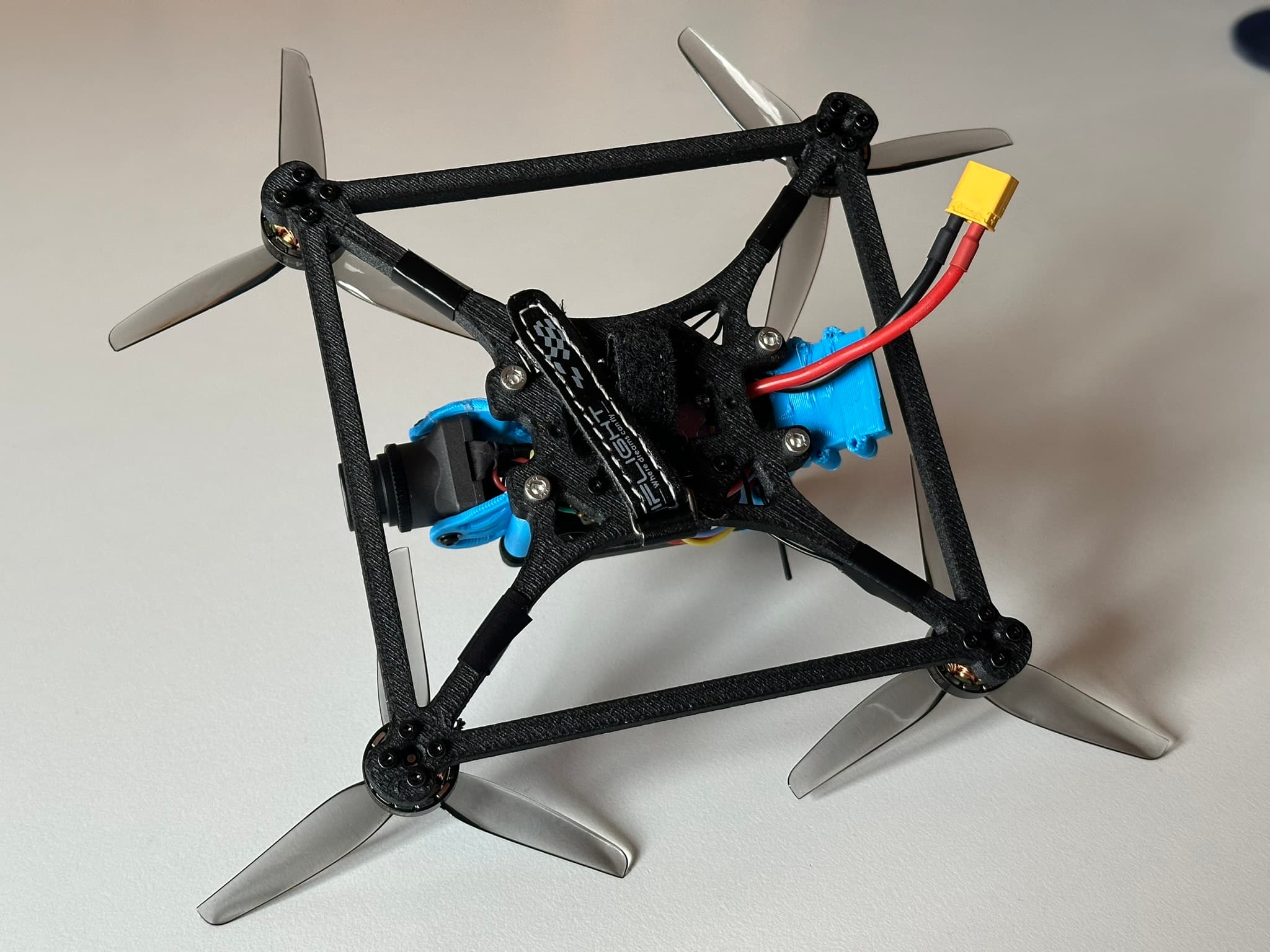

CA35-Night

Lightweight 3.5 inch FPV frame optimized for night flights

CA35-Night is a lightweight 5 mm box-style frame for 3D printing, designed for efficient night cruising with clear visibility even in very low-light conditions.

Get model from MakerWorld Betaflight Config Back to CarviFPV

Image Gallery

6 images

Highlights

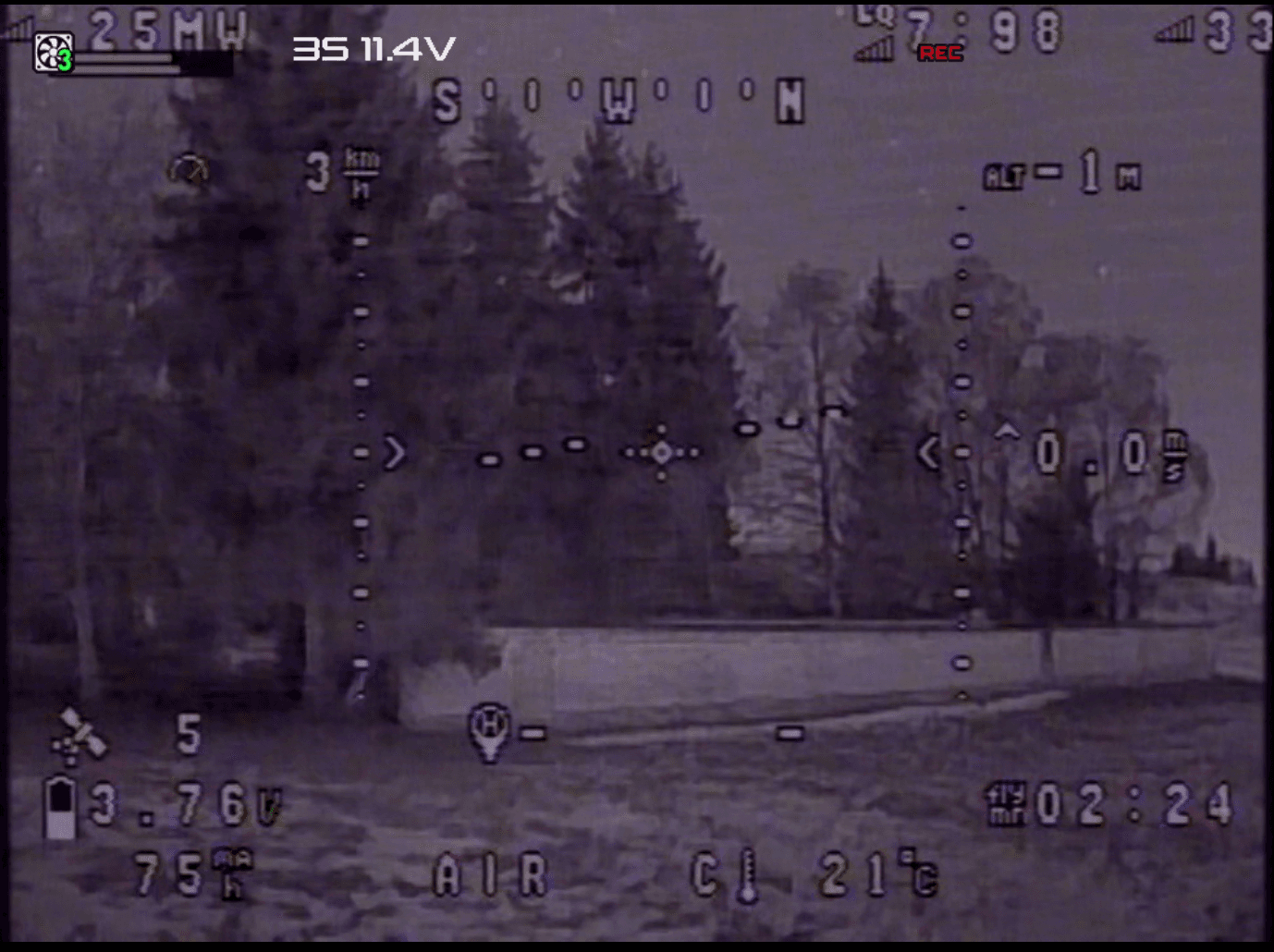

CA35 Night DVR frame with on-screen display

Released by CarviFPV with a 5 mm box-style frame architecture optimized for night performance

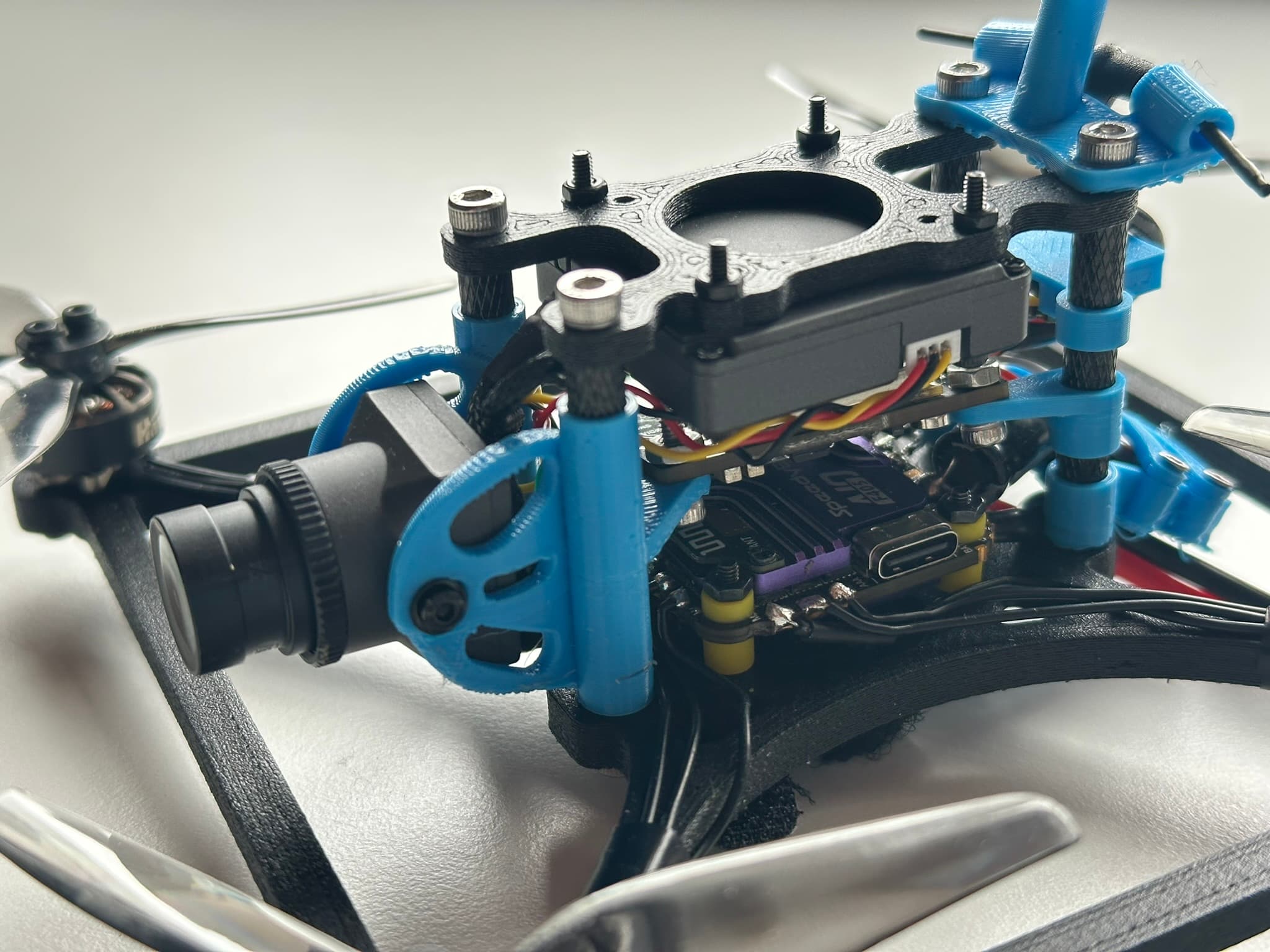

Two main printed parts: main frame and top plate, plus flexible TPU mounts for camera, antennas, RC receiver, and optional VTX holder
Rigid frame parts are recommended in PAHT-CF (tested), with PA6-CF, PET-CF, and PPA-CF as suitable alternatives
Designed for Caddx Infra V2 and compatible with standard analog VTX systems and HDZero variants

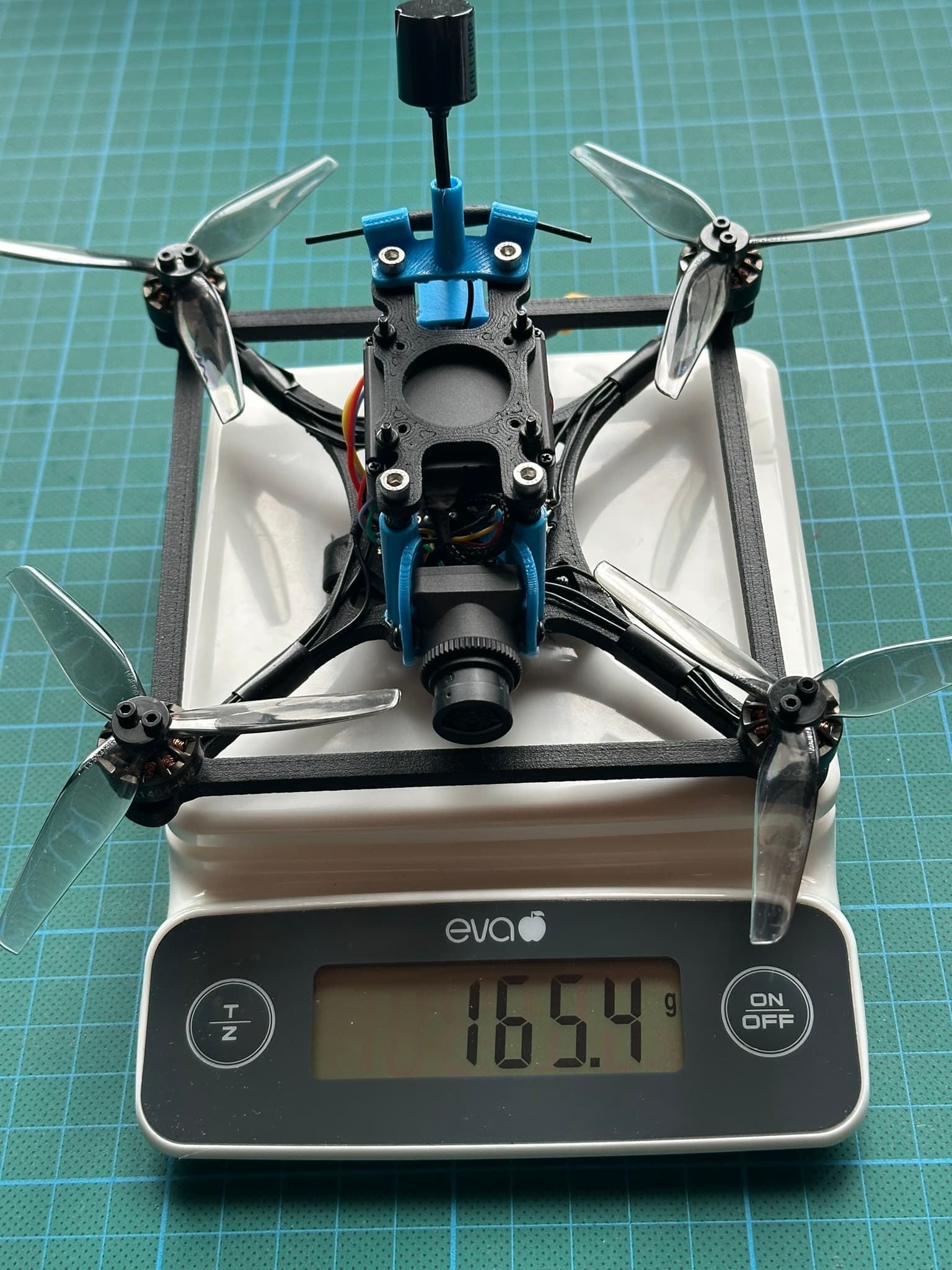

Targets sub-250g all-up weight on 4S packs up to 750 mAh (up to 800 mAh depending on setup)
Efficient cruising setups can reach up to 9 minutes of flight time for smooth night missions
